MapPickerField

Summary

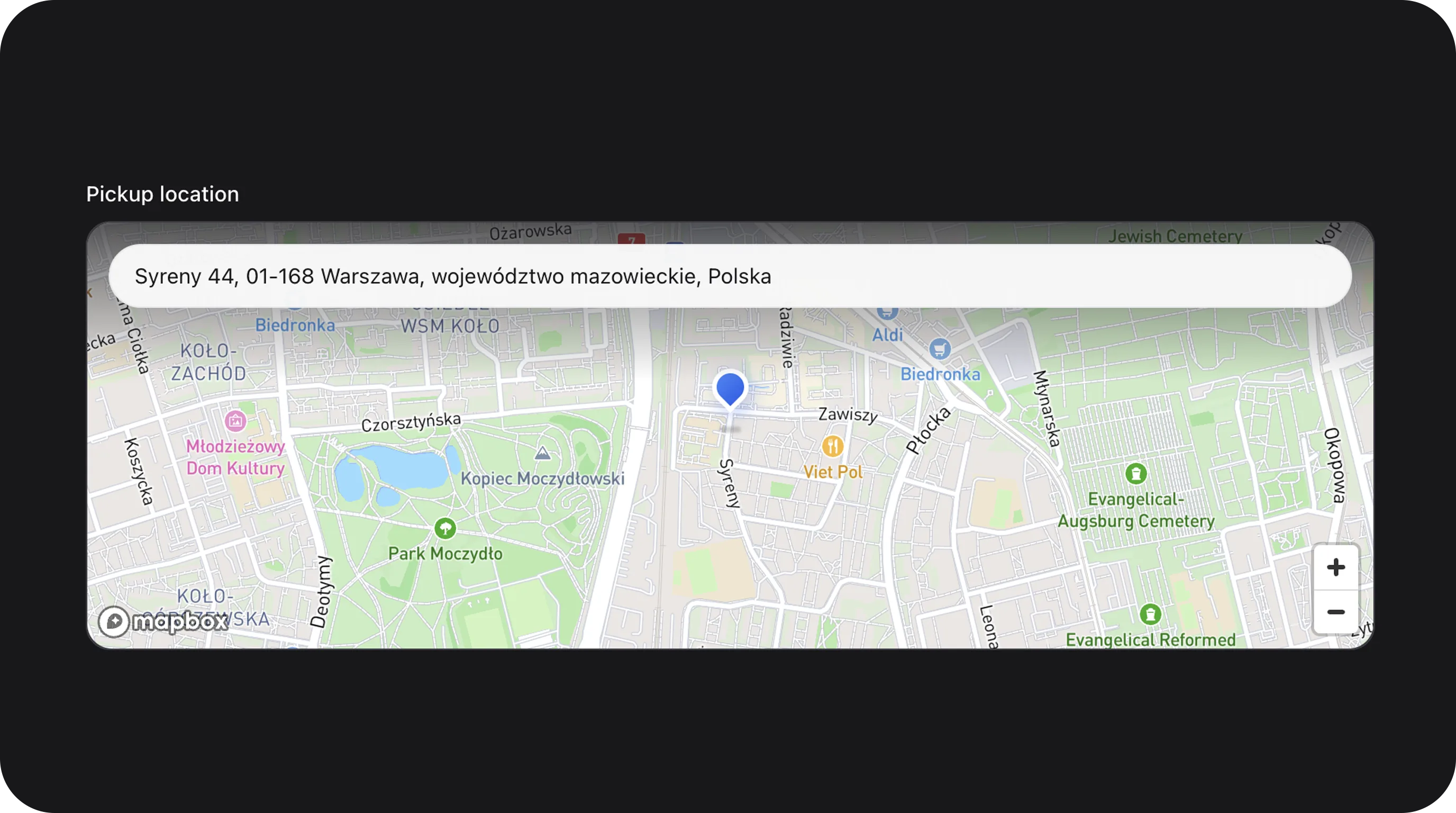

Mapbox-powered address picker with geocoding search, draggable pin, and configurable stored fields. Supports both structured array output (coordinates, street, city, etc.) and formatted string output. Ideal for location selection in delivery, real estate, or event management apps.


Class	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\MapPickerField`
State type (internal)	Canonical array with keys from `ALL_FIELDS`
Dehydrated state	Subset of fields per `fields()`, or formatted string per `storeFormat()`
FieldType	`map_picker`
Playground	`map-picker` slug in Flex Fields playground

Requires a Mapbox access token in config('filament-flex-fields.mapbox.access_token') or per-field via mapboxToken().

Basic usage

Structured Location (Coordinates + Address)

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\MapPickerField;

MapPickerField::make('location')
    ->label('Office address')
    ->fields(['lat', 'lng', 'street', 'city', 'postcode', 'country', 'place_name'])
    ->requiredFields(['lat', 'lng', 'city'])
    ->streetAddressesOnly()
    ->defaultCenter([52.2297, 21.0122])
    ->defaultZoom(12);

Formatted String Output

MapPickerField::make('venue')
    ->storeFormat(MapPickerField::STORE_STRING)
    ->stringFormat('{street}, {city} ({country})')
    ->countries(['PL', 'DE']);

State & validation

Canonical internal keys

lat, lng, street, city, region, postcode, country, country_name, place_name

Stored value

`storeFormat`	Dehydrated value
`structured` (default)	Array with only keys from `fields()`
`string`	Single string from `stringFormat()` placeholders `{field}`

Validation rules (built-in)

Behaviour	Detail
`required()`	At least one configured field must have a value
`requiredFields()`	Listed fields must be filled when any value present
Latitude/Longitude	Automatically validated when present in `fields()`
`streetAddressesOnly()`	Ensures a full street address is selected; area-level results are rejected

Configuration API

All methods accept Closure unless noted.

Method	Type	Default	Description
`fields(array $fields)`	Setup	default	Which address parts to store and show
`storeFormat(string $format)`	Setup	`structured`	`structured` or `string`
`stringFormat(string $format)`	Setup	`{place_name}`	Template for string storage
`requiredFields(array $fields)`	Setup	`[]`	Fields required when partially filled
`mapboxToken(string $token)`	Setup	config	Override Mapbox access token
`defaultCenter(array $center)`	Setup	Warsaw	`[latitude, longitude]`
`defaultZoom(int $zoom)`	Setup	`12`	Initial map zoom `1`–`22`
`searchable(bool $condition)`	Setup	`true`	Show address search box
`countries(array $countries)`	Setup	`null`	Restrict results to ISO country codes
`streetAddressesOnly(bool $cond)`	Setup	`false`	Restrict to full street addresses only
`searchTypes(array $types)`	Setup	`null`	Limit results to specific place types
`language(string\|null $language)`	Setup	config / locale	Preferred results language (`null` = auto)
`minSearchLength(int $length)`	Setup	`2`	Characters before search fires
`searchDebounce(int $ms)`	Setup	`350`	Debounce after typing
`readOnly(bool $condition)`	Setup	`false`	Disable map interaction

POI note: searchTypes([MapboxSearchType::Poi]) returns general Mapbox points of interest — not restaurant/cafe category filters (Geocoding v5 limitation).

FlexField / Flex Forms schema config

Shared with AddressAutocompleteField via AppliesGeocodingStudioConfig / GeocodingSearchScope:

Config key	Behaviour
`layout`	Studio: `map` (default) or `input` (switches block to address autocomplete)
`search_scope`	Preset: `all`, `address`, `cities`, `regions`, `countries`, `admin`, `poi`, `custom`
`search_area` + `countries`	Global vs ISO whitelist
`language_mode` + `language`	Auto locale vs manual code
`default_center` / `default_zoom`	Map-only defaults
`search_types` / `street_addresses_only`	Applied when `search_scope=custom`

Real-world examples

Pickup Point (POI only)

use Bjanczak\FilamentFlexFields\Enums\MapboxSearchType;

MapPickerField::make('pickup_point')
    ->searchTypes([MapboxSearchType::Poi])
    ->fields(['place_name', 'lat', 'lng'])
    ->required();

City Selector

MapPickerField::make('city')
    ->searchTypes([MapboxSearchType::Place])
    ->fields(['city', 'country'])
    ->storeFormat('string')
    ->stringFormat('{city}, {country}');

Playground

/admin/flex-fields-playground/map-picker See Playground for setup.

Component	When to use instead
AddressAutocompleteField	Address search without a map
CountryField	Simple country dropdown
FlexTextInput	Manual address entry

CSS classes (reference)

Class	Role
`fff-map-picker-field`	Root wrapper
`fff-map-picker`	Alpine root container
`fff-map-picker__search-wrap`	Search input + dropdown container
`fff-map-picker__dropdown-panel`	Autocomplete suggestions list
`fff-map-picker__selection-error`	Inline error for rejected results
`fff-map-picker__canvas`	Mapbox map container
`fff-map-picker__summary`	Selected address summary below map
