FlexFileUpload & FlexImageUpload - Filament Flex Fields

Summary

Styled Filament file upload with security defaults, MIME presets, upload summaries, optional metadata sidecars, image optimization hooks, scoped per-user directories, and opt-in webcam capture / URL import tabs (v2.6.1).


FlexFileUpload	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\FlexFileUpload`
FlexImageUpload	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\FlexImageUpload` (extends `FlexFileUpload`, `imagesOnly()` preset)
State type	`string\|array\|null` — stored path(s) on disk
FieldType	`file` → `FlexFileUpload`, `image` → `FlexImageUpload`
Extends	`Filament\Forms\Components\FileUpload`

Basic usage

Avatar (image)

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\FlexImageUpload;

FlexImageUpload::make('avatar')
    ->label('Profile photo')
    ->withRecommendedDefaults()
    ->avatar()
    ->imageEditor()
    ->circleCropper()
    ->disk('public')
    ->directory('avatars')
    ->maxFiles(1)
    ->optimizeImages()
    ->maxImageWidth(512)
    ->maxImageHeight(512);

Single document

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\FlexFileUpload;

FlexFileUpload::make('contract')
    ->label('Contract PDF')
    ->withRecommendedDefaults()
    ->documentsOnly()
    ->disk('local')
    ->directory('contracts')
    ->maxFiles(1)
    ->showFileIcon()
    ->uploadSummary()
    ->requireReplaceConfirmation();

Multiple files with total size guard

FlexFileUpload::make('attachments')
    ->withRecommendedDefaults()
    ->multiple()
    ->maxFiles(5)
    ->maxTotalSizeKb(10240)
    ->remainingSlotsLabel()
    ->uploadSummary()
    ->disk('local')
    ->directory('inquiries/attachments');

Metadata sidecar

Stores original filename, MIME, size, and image dimensions in a sibling state path:

FlexFileUpload::make('scan')
    ->withRecommendedDefaults()
    ->storeMetadataIn('scan_meta')
    ->disk('local')
    ->directory('scans');
// $data['scan_meta'] => ['original_name' => '...', 'mime' => '...', 'size' => ..., 'width' => ...]

Webcam & URL import

You can extend the default upload dropzone with additional input methods. The following example adds both a camera capture tab and a remote URL import tab:

FlexImageUpload::make('vehicle_photo')
    ->label('Vehicle Photo')
    ->withRecommendedDefaults()
    ->imagesOnly()
    ->allowWebcamUpload() // Enables the native device camera tab
    ->allowUrlUpload()    // Enables the remote URL download tab
    ->optimizeImages()
    ->maxImageWidth(1920)
    ->maxImageHeight(1080)
    ->disk('public')
    ->directory('vehicle-photos');

Configuration API

`withRecommendedDefaults()` / `applyRecommendedSecurityDefaults()`

Applies recommended security and UX defaults: createFormStrategy(), deleteFileOnRemove(), deleteReplacedFiles(), maxSize(5120) (5 MB), downloadable(), openable(), and focusOutline().

FlexFileUpload::make('attachment')
    ->withRecommendedDefaults();

`documentsOnly()`

Sets the accepted file types to typical document formats (PDF, Word, Excel, PowerPoint, Text, etc.).

FlexFileUpload::make('resume')
    ->documentsOnly();

`imagesOnly()`

Sets the accepted file types to image formats (JPEG, PNG, GIF, WebP, SVG, etc.).

FlexImageUpload::make('photo')
    ->imagesOnly();

`spreadsheetsOnly()`

Sets the accepted file types to spreadsheets (CSV, XLS, XLSX).

FlexFileUpload::make('report')
    ->spreadsheetsOnly();

`allowedExtensions(array $extensions)`

Restricts uploads to a custom array of file extensions.

FlexFileUpload::make('scan')
    ->allowedExtensions(['pdf', 'jpg', 'png']);

`rejectExecutableFiles(bool|Closure $condition = true)`

Blocks dangerous executable extensions (such as .php, .sh, .bat, etc.) and raises a validation error.

FlexFileUpload::make('attachment')
    ->rejectExecutableFiles();

`scopedDirectory(string|Closure $prefix = 'uploads')`

Configures dynamic per-user scoped subdirectories: {prefix}/{user_id}/....

FlexFileUpload::make('document')
    ->scopedDirectory('user-files');

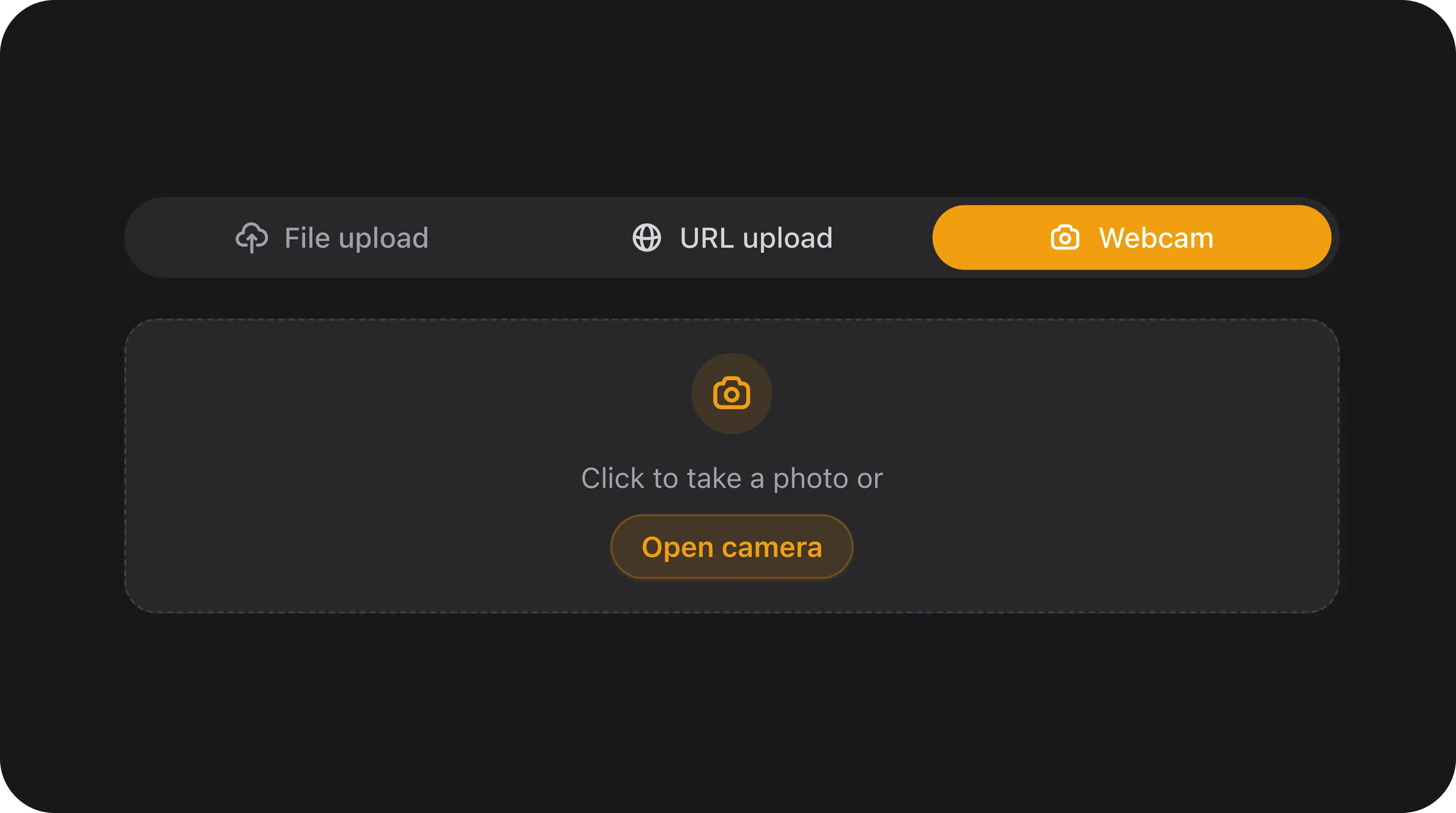

`allowWebcamUpload(bool|Closure $condition = true)`

Adds a new “Camera” tab to the upload component, allowing users to directly capture photos using their device’s native camera. It supports dynamic front/back camera toggling (environment vs user facing), torch/flash control (if supported by hardware), and gives the user a chance to review/retake the photo before injecting it into the queue. Note: Since it uses the navigator.mediaDevices.getUserMedia browser API, this feature requires a secure context (HTTPS) to function correctly. It perfectly integrates with imagesOnly() and Filament’s optimizeImages() configurations.

FlexImageUpload::make('inspection_photo')
    ->label('Vehicle Damage Photo')
    ->imagesOnly()
    ->multiple()
    ->maxFiles(3)
    ->allowWebcamUpload() // Enables the camera tab
    ->optimizeImages()
    ->maxImageWidth(1920)
    ->maxImageHeight(1080);

`allowUrlUpload(bool|Closure $condition = true)`

Adds a new “URL” tab to the upload component, allowing users to paste a direct link to a file. The file is fetched server-side, validated against SSRF rules (localhost, private IPs, and metadata hostnames are rejected), staged as a temporary preview, then injected into the FilePond queue as a native File. Nothing is written to the field disk until form save.

FlexFileUpload::make('attachment')
    ->label('Import Asset')
    ->withRecommendedDefaults()
    ->allowUrlUpload() // Enables the remote URL import tab
    ->disk('public')
    ->directory('imported-assets');

Security: URL import is disabled unless you call allowUrlUpload(). Unsafe URLs are blocked before any server fetch runs.

`createFormStrategy(bool|Closure $condition = true)`

Prevents file path tampering by deferring disk storage until form submission.

FlexFileUpload::make('file')
    ->createFormStrategy();

`storeMetadataIn(string|Closure $statePath)`

Saves uploaded file metadata (original filename, MIME type, file size, image dimensions) to a separate database column or state path.

FlexFileUpload::make('document')
    ->storeMetadataIn('document_metadata');

`maxTotalSizeKb(int|Closure $kilobytes)`

Sets a maximum total file size limit in kilobytes across all uploaded files (useful for multiple file uploads).

FlexFileUpload::make('attachments')
    ->multiple()
    ->maxTotalSizeKb(10240); // 10 MB total limit

`remainingSlotsLabel(bool|Closure $condition = true)`

Displays a remaining slots label (e.g. “2 slots remaining”) when maxFiles is set.

FlexFileUpload::make('gallery')
    ->multiple()
    ->maxFiles(5)
    ->remainingSlotsLabel();

`minImageDimensions(int $width, int $height)`

Validates that uploaded images meet minimum width and height constraints.

FlexImageUpload::make('banner')
    ->minImageDimensions(1200, 400);

`maxImageDimensions(int $width, int $height)`

Validates that uploaded images do not exceed maximum width and height constraints.

FlexImageUpload::make('thumbnail')
    ->maxImageDimensions(800, 600);

`deleteFileOnRemove(bool|Closure $condition = true)`

Deletes files from storage when they are removed from the form UI.

FlexFileUpload::make('document')
    ->deleteFileOnRemove();

`deleteReplacedFiles(bool|Closure $condition = true)`

Deletes old files from storage when they are replaced by new uploads.

FlexFileUpload::make('document')
    ->deleteReplacedFiles();

`pruneOrphanedOnSave(bool|Closure $condition = true)`

Removes old, unreferenced files from the upload directory when saving the model.

Warning Do not use this with a shared static directory() (e.g., ->directory('gallery')). This method deletes ALL files in the specified directory that do not belong to the current record. Using it on a shared directory will cause you to lose files from other records! You must use this method in combination with ->scopedDirectory() or a closure that provides a unique directory per record.

FlexFileUpload::make('gallery')
    ->scopedDirectory('galleries')
    ->pruneOrphanedOnSave();

`uploadSummary(bool|Closure $condition = true)`

Displays a summary block below the file list containing count and total file size.

FlexFileUpload::make('attachments')
    ->multiple()
    ->uploadSummary();

`emptyStateHint(string|Closure $hint)`

Sets a custom hint text displayed inside the dropzone when it is empty.

FlexFileUpload::make('avatar')
    ->emptyStateHint('Drag your avatar here...');

`dropzoneLabel(string|Closure $label)`

Overrides the main dropzone label text.

FlexFileUpload::make('invoice')
    ->dropzoneLabel('Upload invoice (PDF)');

`requireReplaceConfirmation(bool|Closure $condition = true)`

Asks the user for confirmation before replacing an already uploaded file.

FlexFileUpload::make('document')
    ->requireReplaceConfirmation();

`compactList(bool|Closure $condition = true)`

Renders a denser, more compact layout for the uploaded files list.

FlexFileUpload::make('attachments')
    ->multiple()
    ->compactList();

`showFileIcon(bool|Closure $condition = true)`

Displays a descriptive file type icon in the uploaded files list.

FlexFileUpload::make('attachments')
    ->multiple()
    ->showFileIcon();

`variant(string|Closure $variant)`

Sets the visual design variant (primary, secondary, or flat).

FlexFileUpload::make('document')
    ->variant('flat');

`optimizeImages(bool|Closure $condition = true)`

Resizes and compresses images to optimize page weight (requires GD or Imagick).

FlexImageUpload::make('photo')
    ->optimizeImages();

`optimizeImagesToWebp(bool|Closure $condition = false)`

Converts optimized image files to the WebP format.

FlexImageUpload::make('photo')
    ->optimizeImagesToWebp();

`maxImageWidth(int|Closure $width)` / `maxImageHeight(int|Closure $height)`

Sets maximum image width and height boundaries for client-side resizing.

FlexImageUpload::make('photo')
    ->maxImageWidth(1920)
    ->maxImageHeight(1080);

`stripExif(bool|Closure $condition = true)`

Strips EXIF metadata from uploaded images on save.

FlexImageUpload::make('photo')
    ->stripExif();

Inherited Filament `FileUpload` API

disk(), directory(), visibility(), multiple(), maxFiles(), minFiles(), maxSize(), acceptedFileTypes(), imageEditor(), avatar(), downloadable(), openable(), previewable(), deletable(), standard validation — all work unchanged.

FlexField schema config

Config key	Maps to
`disk`	`disk()`
`directory`	`directory()`
`visibility`	`visibility()`
`multiple`	`multiple()`
`max_size_kb` / `max_size`	`maxSize()`
`max_files` / `min_files`	`maxFiles()` / `minFiles()`
`max_total_size_kb`	`maxTotalSizeKb()`
`accepted_types`	`acceptedFileTypes()`
`documents_only`	`documentsOnly()`
`images_only`	`imagesOnly()`
`variant`	`variant()`
`size`	`size()`
`store_metadata_in`	`storeMetadataIn()`
`scoped_directory`	`scopedDirectory()`
`optimize_images`	`optimizeImages()`
`max_image_width` / `max_image_height`	`maxImageWidth()` / `maxImageHeight()`
`allow_webcam_upload`	`allowWebcamUpload()`
`allow_url_upload`	`allowUrlUpload()`
`storage_driver`	`'disk'` (default) or `'spatie'` — preferred
`use_spatie_media_library`	Deprecated alias of `storage_driver=spatie`
`media_collection`	Spatie `collection()`
`conversion`	Spatie `conversion()`
`conversions_disk`	Spatie `conversionsDisk()`
`responsive_images`	Spatie `responsiveImages()`
`custom_properties`	Spatie `customProperties()`

Security

Concern	Behaviour
Executable uploads	`rejectExecutableFiles()` blocks dangerous extensions (`.php`, `.sh`, …).
URL import SSRF	Server-side fetch rejects localhost, loopback, private/link-local IPs, `.local` / `.internal` hostnames, and cloud metadata endpoints before download.
Webcam capture	Requires HTTPS (`getUserMedia` secure context). Not offered for `documentsOnly()` uploads.
Deferred disk writes	`createFormStrategy()` (included in `withRecommendedDefaults()`) prevents path tampering until form save.

CSS classes

Class	Meaning
`fff-flex-file-upload`	Root wrapper
`fff-flex-file-upload--{primary\|secondary\|flat}`	Variant
`fff-flex-file-upload--{sm\|md\|lg}`	Size

Implementation notes

Requires Livewire temporary uploads; configure FILESYSTEM_DISK and disk credentials.
Webcam capture requires HTTPS. URL import rejects unsafe remote URLs before server fetch.
Playground examples under File upload in Flex Fields Playground (File / Camera / URL tabs).
Spatie Media Library — full walkthrough (conversions, S3, FormBuilder, create-form timing): Media Ingress. Quick start below.

Spatie Media Library (file / image fields)

Use when you need Media Library UUIDs, collections, and named conversions (thumb, medium, …). Disk FlexFileUpload only stores one path (+ optional resize/optimize) — it does not run Spatie conversions.

composer require spatie/laravel-medialibrary filament/spatie-laravel-media-library-plugin

Model — define conversions (full Spatie API)

use Spatie\MediaLibrary\HasMedia;
use Spatie\MediaLibrary\InteractsWithMedia;
use Spatie\MediaLibrary\MediaCollections\Models\Media;

class Product extends Model implements HasMedia
{
    use InteractsWithMedia;

    public function registerMediaCollections(): void
    {
        $this->addMediaCollection('gallery')->useDisk('s3');
    }

    public function registerMediaConversions(?Media $media = null): void
    {
        $this->addMediaConversion('thumb')->width(200)->height(200)->nonQueued();
        $this->addMediaConversion('medium')->width(800)->format('webp');
        $this->addMediaConversion('large')->fit(\Spatie\Image\Enums\Fit::Max, 2000, 2000);
    }
}

Flex Fields does not limit registerMediaConversions() — Spatie runs it after upload.

Form field

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\FlexFileUpload;
use Bjanczak\FilamentFlexFields\Filament\Forms\Components\Spatie\FlexSpatieMediaLibraryFileUpload;

// Factory sugar (returns FlexSpatieMediaLibraryFileUpload)
FlexFileUpload::spatie('gallery')
    ->collection('gallery')
    ->disk('s3')
    ->conversion('thumb')      // preview in the form UI
    ->responsiveImages()
    ->multiple()
    ->reorderable()
    ->withRecommendedDefaults();

// Same as:
FlexSpatieMediaLibraryFileUpload::make('gallery')
    ->collection('gallery')
    ->conversion('thumb');

Disk vs Spatie for the same UX sources

Webcam / URL import go through the same Flex sources layer; choose driver at construction:

// One optimized file on S3 (no Spatie thumbs)
FlexImageUpload::make('photo')
    ->allowWebcamUpload()
    ->allowUrlUpload()
    ->optimizeImages()
    ->maxImageWidth(1920)
    ->disk('s3')
    ->directory('photos');

// Spatie UUID + model conversions
FlexFileUpload::spatie('photo')
    ->collection('gallery')
    ->conversion('thumb')
    ->disk('s3');

FormBuilder

'config' => [
    'storage_driver' => 'spatie',
    'media_collection' => 'gallery',
    'conversion' => 'thumb',
    'responsive_images' => true,
    'disk' => 's3',
],

See Media Ingress for tenant disks, AV, quarantine, create-form Spatie timing, and Rich Editor Spatie attachments.

Playground

Slug: file-upload

Demo tab	Shows
File	Documents, summaries, metadata sidecar
Camera	Webcam capture (HTTPS)
URL	Remote import with SSRF protection

/admin/flex-fields-playground/file-upload — see Playground.

Component	When to use instead
VideoField	Video-specific upload and preview
AudioField	Audio recording and playback
SignatureField	Drawn signature SVG, not file upload
FlexImageUpload	Same component with `imagesOnly()` preset

​Summary

​Basic usage

​Avatar (image)

​Single document

​Multiple files with total size guard

​Metadata sidecar

​Webcam & URL import

​Configuration API

​withRecommendedDefaults() / applyRecommendedSecurityDefaults()

​documentsOnly()

​imagesOnly()

​spreadsheetsOnly()

​allowedExtensions(array $extensions)

​rejectExecutableFiles(bool|Closure $condition = true)

​scopedDirectory(string|Closure $prefix = 'uploads')

​allowWebcamUpload(bool|Closure $condition = true)

​allowUrlUpload(bool|Closure $condition = true)

​createFormStrategy(bool|Closure $condition = true)

​storeMetadataIn(string|Closure $statePath)

​maxTotalSizeKb(int|Closure $kilobytes)

​remainingSlotsLabel(bool|Closure $condition = true)

​minImageDimensions(int $width, int $height)

​maxImageDimensions(int $width, int $height)

​deleteFileOnRemove(bool|Closure $condition = true)

​deleteReplacedFiles(bool|Closure $condition = true)

​pruneOrphanedOnSave(bool|Closure $condition = true)

​uploadSummary(bool|Closure $condition = true)

​emptyStateHint(string|Closure $hint)

​dropzoneLabel(string|Closure $label)

​requireReplaceConfirmation(bool|Closure $condition = true)

​compactList(bool|Closure $condition = true)

​showFileIcon(bool|Closure $condition = true)

​variant(string|Closure $variant)

​optimizeImages(bool|Closure $condition = true)

​optimizeImagesToWebp(bool|Closure $condition = false)

​maxImageWidth(int|Closure $width) / maxImageHeight(int|Closure $height)

​stripExif(bool|Closure $condition = true)

​Inherited Filament FileUpload API

​FlexField schema config

​Security

​CSS classes

​Implementation notes

​Spatie Media Library (file / image fields)

​Model — define conversions (full Spatie API)

​Form field

​Disk vs Spatie for the same UX sources

​FormBuilder

​Playground

​Related components
