DualListboxField

Summary

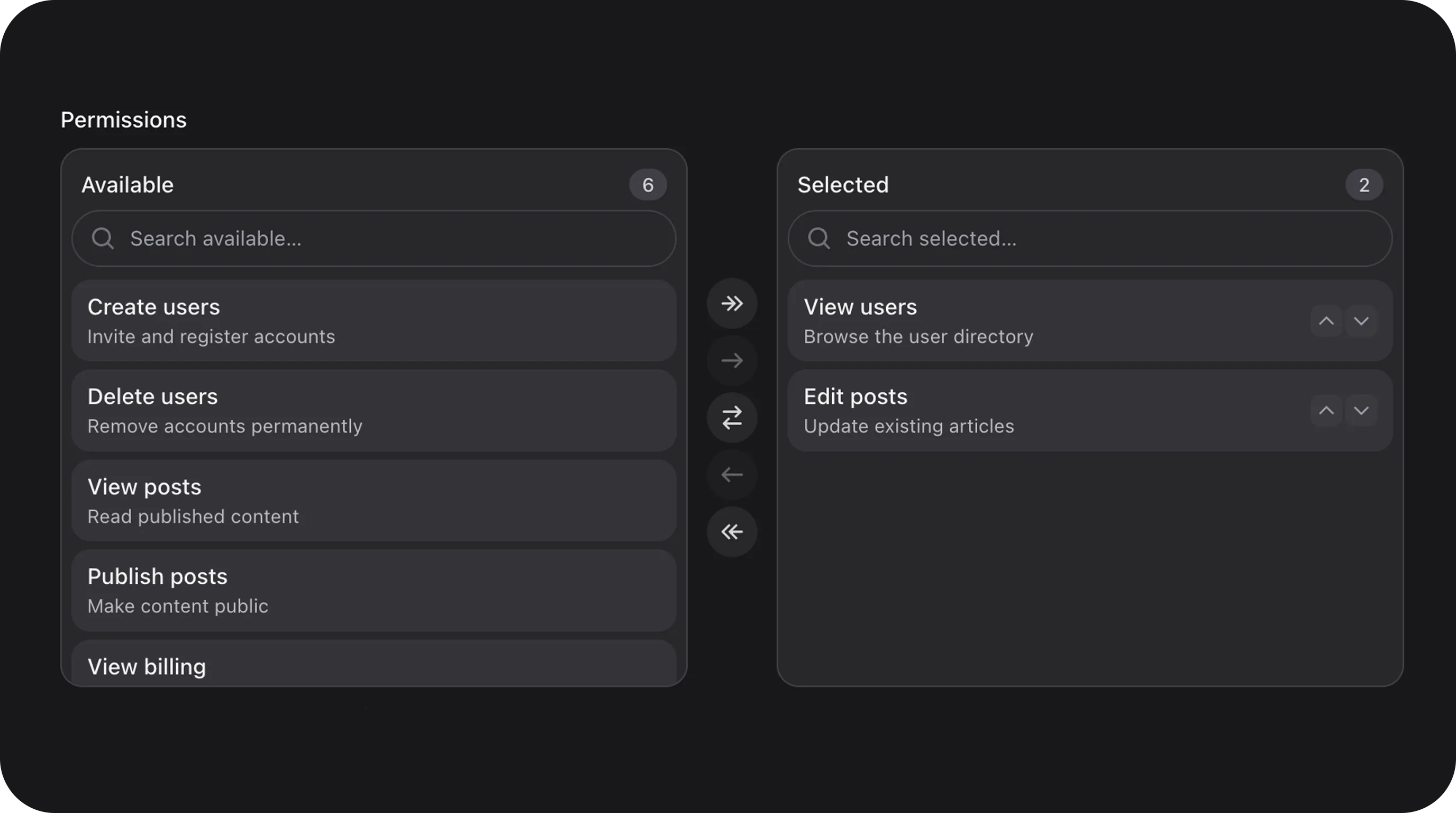

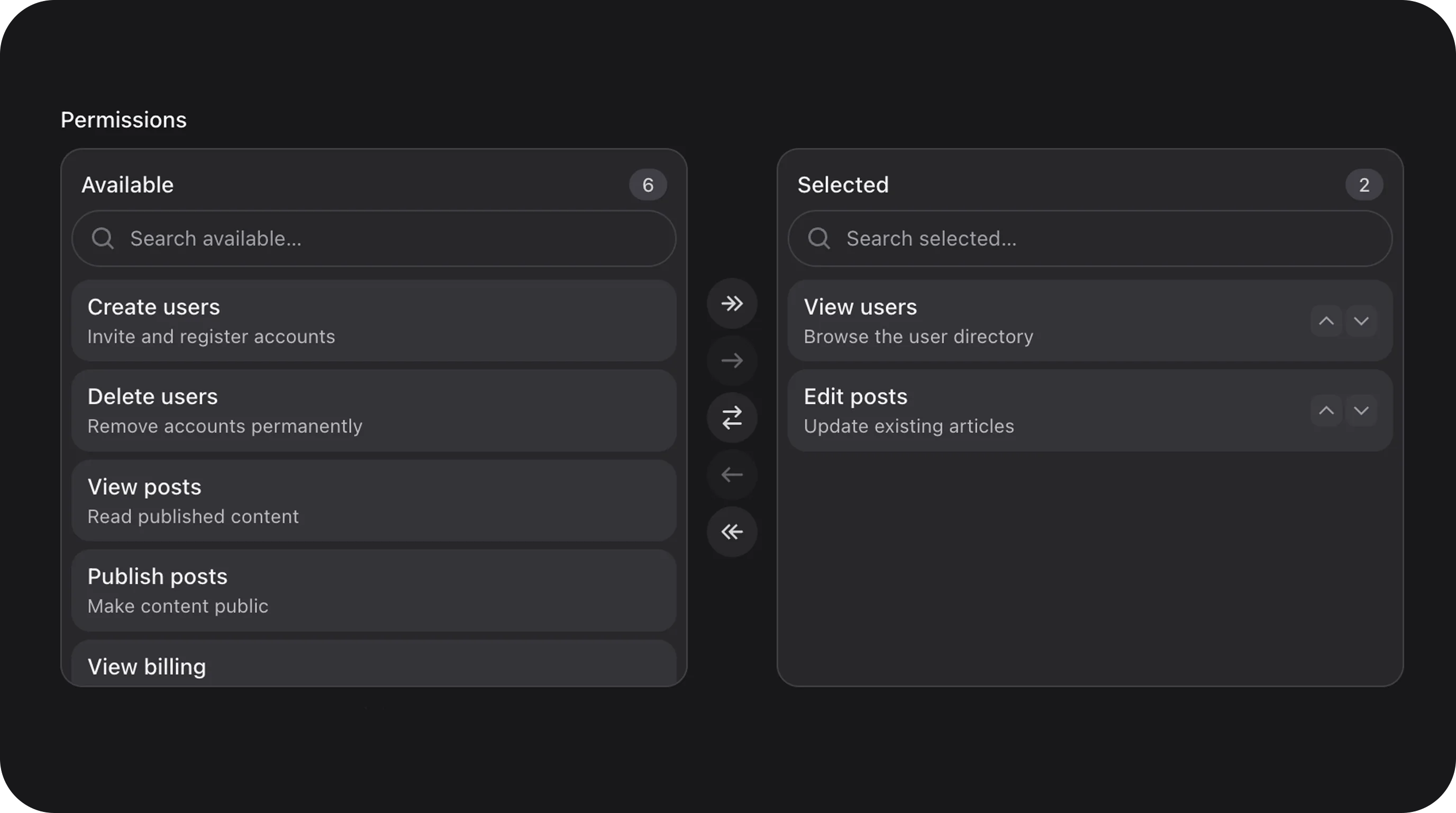

Multi-select with “Available” and “Selected” panes. Supports real-time search, drag-and-drop reordering, double-click transfer, and virtual scrolling for high-performance handling of thousands of options.


Class	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\DualListboxField`
State type	`array<string\|int>` — list of selected keys
Model cast	`'roles' => 'array'` · `'tags' => 'array'`
FieldType	`dual-listbox`
Playground	`dual-listbox` slug in Flex Fields playground
Default variant	`bordered`

Basic usage

Standard role selection

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\DualListboxField;

DualListboxField::make('roles')
    ->options([
        'admin' => 'Administrator',
        'editor' => 'Editor',
        'viewer' => 'Viewer',
    ])
    ->searchable();

Locked options

Mark keys that must stay put — they still appear in the list, but cannot be transferred between panes. Locked items already in Selected can still be reordered.

DualListboxField::make('permissions')
    ->options($permissions)
    ->disabledOptions(['users.view', 'users.delete']);

Custom labels and height

DualListboxField::make('permissions')
    ->availableLabel('Unassigned Permissions')
    ->selectedLabel('Active Permissions')
    ->listHeight('24rem')
    ->reorderable(false);

State & validation

Stored value

The field stores an array of keys from the options() list. The order of keys in the array matches the order in the “Selected” pane if reorderable() is enabled.

$record->roles; // ['admin', 'editor']

Validation Rules

You can enforce minimum or maximum selection counts:

Rule	Method	Description
`min`	`minItems(5)`	Must select at least 5 items
`max`	`maxItems(10)`	Cannot select more than 10 items
`exact`	`exactItems(3)`	Must select exactly 3 items

Advanced Features

Virtual Scrolling

When the number of options exceeds 100, the component automatically enables virtual scrolling. This allows it to handle 10,000+ options without slowing down the browser.

Double-click Transfer

Users can double-click any item to instantly move it to the other pane. This can be disabled via moveOnDoubleClick(false).

Reorder selected items

Drag items in the Selected pane to change order, including locked (disabledOptions) rows. Those rows cannot be moved to Available. Arrow buttons remain as an accessible fallback. Disable both with reorderable(false). On stacked (narrow) layouts, transfer arrows point up and down.

Multi-select on touch

On phones and tablets, scroll the list normally. Hold one item still for a moment to pick it up — a stacked preview follows that thumb, with a count badge when more than one item is held. Tap more items with another finger to add them to the stack. After you drop the group, the highlight is cleared. Drop on the Selected list to insert before or after a row (upper vs lower half), or on Available to remove items from Selected. Transfer buttons still move the whole selection. On desktop, hold Cmd/Ctrl (or Shift for a range) and use drag-and-drop in the Selected pane.

Custom Icons

Every button and search icon can be customized to match your UI.

DualListboxField::make('items')
    ->icons([
        'search' => 'heroicon-o-magnifying-glass',
        'move_right' => 'heroicon-o-arrow-right-circle',
        'move_left' => 'heroicon-o-arrow-left-circle',
    ]);

Configuration API

All methods accept Closure unless noted.

Method	Type	Default	Description
`options(array\|Closure $options)`	Setup	`[]`	Key => Label mapping
`disabledOptions(array\|Closure $keys)`	Setup	`[]`	Keys that cannot be moved
`variant(string\|Closure $variant)`	Setup	`'bordered'`	`bordered`, `flat`, `faded`
`listHeight(string\|Closure $h)`	Setup	`'16rem'`	Height of the list panes
`searchable(bool\|Closure $cond)`	Setup	`true`	Enable search inputs
`reorderable(bool\|Closure $cond)`	Setup	`true`	Drag selected items to change order (arrow buttons remain)
`moveOnDoubleClick(bool\|Closure $c)`	Setup	`true`	Transfer on double-click
`showTransferButtons(bool\|Closure $c)`	Setup	`true`	Show central action buttons
`availableLabel(string\|Closure $l)`	Setup	(trans)	Label for the left pane
`selectedLabel(string\|Closure $l)`	Setup	(trans)	Label for the right pane
`minItems(int\|Closure $count)`	Setup	`null`	Minimum selection count
`maxItems(int\|Closure $count)`	Setup	`null`	Maximum selection count
`size(string\|Closure $size)`	Setup	`'md'`	`sm`, `md`, `lg` (padding and list labels; search uses the sm control height)
`rounding(string\|Closure $round)`	Setup	config	Border radius token

Real-world examples

User Permissions Management

DualListboxField::make('permissions')
    ->label('System Permissions')
    ->options(Permission::pluck('name', 'id'))
    ->searchable()
    ->availableLabel('Available')
    ->selectedLabel('Granted')
    ->listHeight('30rem')
    ->required();

Playground

/admin/flex-fields-playground/dual-listbox The playground includes a Locked options demo (disabledOptions()). See Playground for setup.

Component	When to use instead
FlexChecklist	Simple multi-select for small lists
SelectField	Standard dropdown with multi-select support
ChoiceCards	Visual card-based multi-selection

CSS classes (reference)

Class	Role
`fff-dual-listbox-field`	Root wrapper
`fff-dual-listbox-field__pane`	Individual list container
`fff-dual-listbox-field__search`	Search input wrapper
`fff-dual-listbox-field__list`	The actual scrollable list
`fff-dual-listbox-field__item`	Individual option element
`fff-dual-listbox-field__actions`	Central button group
`fff-dual-listbox-field--{variant}`	Visual variant class
