SegmentControl

Summary

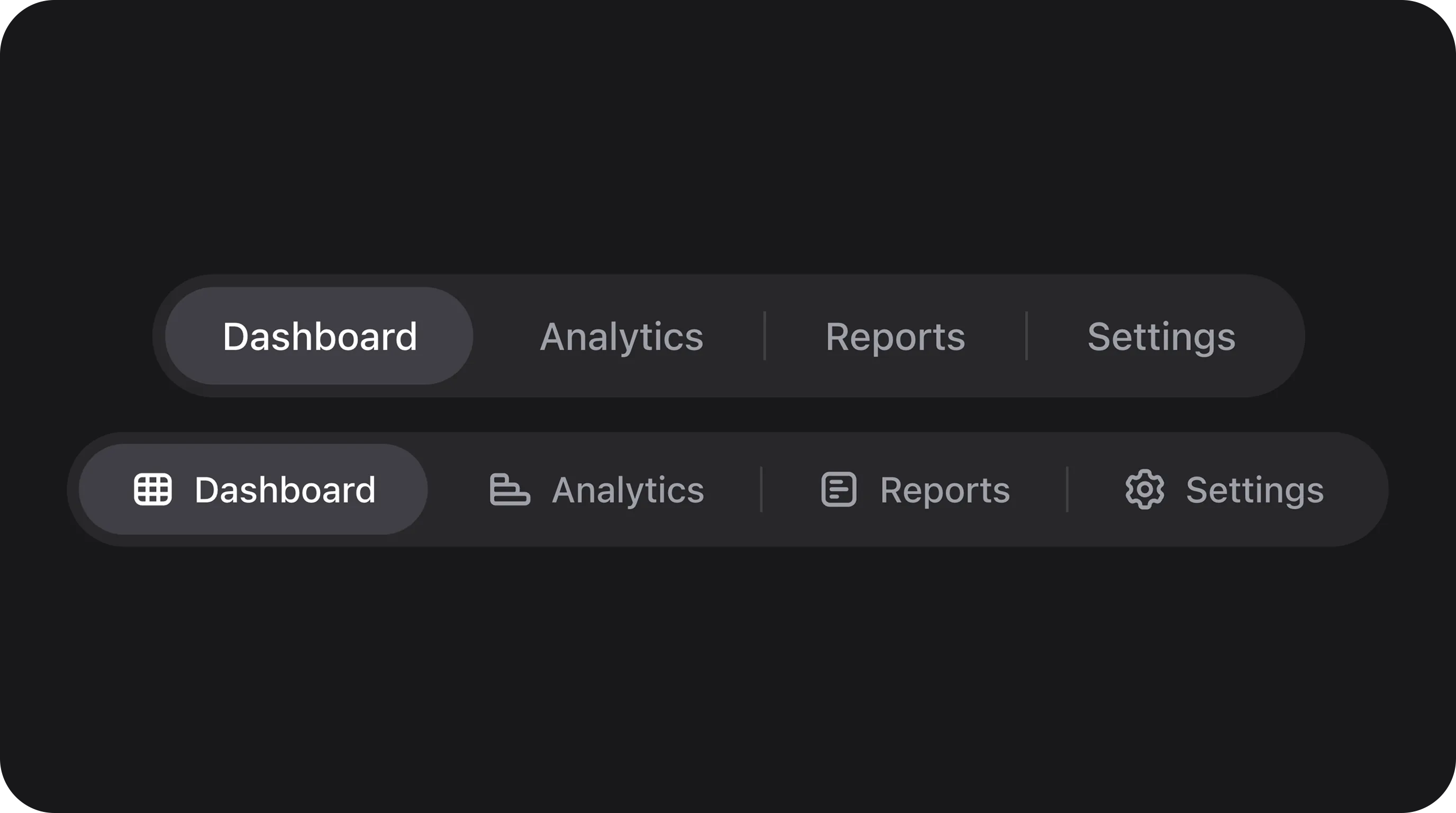

Single-select segmented control — alternative to radio lists or selects, with sliding animations, ghost variants, and optional icon-only modes.


Class	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\SegmentControl`
State type	`string\|int` — one option key
Model cast	`'status' => 'string'` · `'type' => 'integer'`
FieldType	`segment_control`
Playground	`segment-control` slug in Flex Fields playground

Basic usage

Standard segments

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\SegmentControl;

SegmentControl::make('status')
    ->options([
        'draft' => 'Draft',
        'review' => 'In Review',
        'published' => 'Published',
    ]);

Ghost variant with icons and full width

SegmentControl::make('alignment')
    ->label('Text Alignment')
    ->options([
        'left' => 'Left',
        'center' => [
            'label' => 'Center',
            'icon' => 'heroicon-o-bars-3',
            'tooltip' => 'Centered text',
        ],
        'right' => 'Right',
    ])
    ->icons([
        'left' => 'heroicon-o-bars-3-bottom-left',
        'right' => 'heroicon-o-bars-3-bottom-right',
    ])
    ->variant('ghost')
    ->fullWidth();

State & validation

Stored value

State is the option key from options().

$record->status; // string|null — e.g. 'published'

Validation rules (built-in)

Rule	When
`nullable`	Always (unless `required()`)
`Rule::in(...)`	Value must match a configured option key
`required`	When `->required()`

Configuration API

All methods accept Closure unless noted.

Method	Type	Default	Description
`options(array\|Closure $options)`	Setup	`[]`	Option keys => labels or rich arrays (`label`, `icon`, `disabled`, `tooltip`).
`icons(array\|Closure $icons)`	Setup	`[]`	Map of option key => Heroicon name.
`disabledOptions(array\|Closure $keys)`	Setup	`[]`	Keys that cannot be selected.
`variant(string\|Closure $variant)`	Setup	`'default'`	Visual variant: `default` (filled track), `ghost` (transparent track).
`color(string\|Closure\|null $color)`	Setup	`null`	Selection accent color. Defaults to `primary` for `ghost`.
`separators(bool\|Closure $condition = true)`	Setup	`true`	Vertical dividers between segments.
`fullWidth(bool\|Closure $condition = true)`	Setup	`false`	Stretch the control to full field width.
`iconOnly(bool\|Closure $condition = true)`	Setup	`false`	Hide labels; show icons only.
`expandSelectedLabel(bool\|Closure $condition = true)`	Setup	`false`	Animate the selected segment to a wider width.
`size(string\|ControlSize\|Closure $size)`	Setup	`'md'`	Control size: `sm`, `md`, `lg`.

Public helper methods

Method	Returns	Description
`getOptionKeys()`	`array<int, string\|int>`	Valid keys for validation.
`getNormalizedOptions()`	`array`	Resolved options with metadata.
`getVariant()`	`string`	Current variant.
`getColor()`	`?string`	Resolved accent color.

Real-world examples

Responsive device selector (Icon only)

SegmentControl::make('preview_device')
    ->iconOnly()
    ->options([
        'desktop' => ['icon' => 'heroicon-o-computer-desktop', 'label' => 'Desktop'],
        'tablet' => ['icon' => 'heroicon-o-device-tablet', 'label' => 'Tablet'],
        'phone' => ['icon' => 'heroicon-o-device-phone-mobile', 'label' => 'Phone'],
    ])
    ->default('desktop');

Date range selector (Ghost variant)

SegmentControl::make('date_range')
    ->variant('ghost')
    ->separators(false)
    ->options([
        '1w' => '1W',
        '4w' => '4W',
        '1y' => '1Y',
        'all' => 'ALL',
    ])
    ->default('4w');

Playground

/admin/flex-fields-playground/segment-control See Playground for setup.

Component	When to use instead
SegmentTabs	When segments should switch between different form schemas.
NpsField	Survey-specific scales (0–10) with survey semantics.
ChoiceCards	Larger, card-style selection surfaces.

CSS classes (reference)

Class	Role
`fff-segment-control`	Root wrapper
`fff-segment-control--variant-{default\|ghost}`	Visual variant
`fff-segment-control--{sm\|md\|lg}`	Size variant
`fff-segment-control--full-width`	Full width modifier
`fff-segment-track`	Options container
`fff-segment-indicator`	Animated selection background
`fff-segment-item`	Individual segment wrapper
`fff-segment-item--selected`	Active segment state
`fff-segment-item--disabled`	Disabled segment state
