IconPickerField

Summary

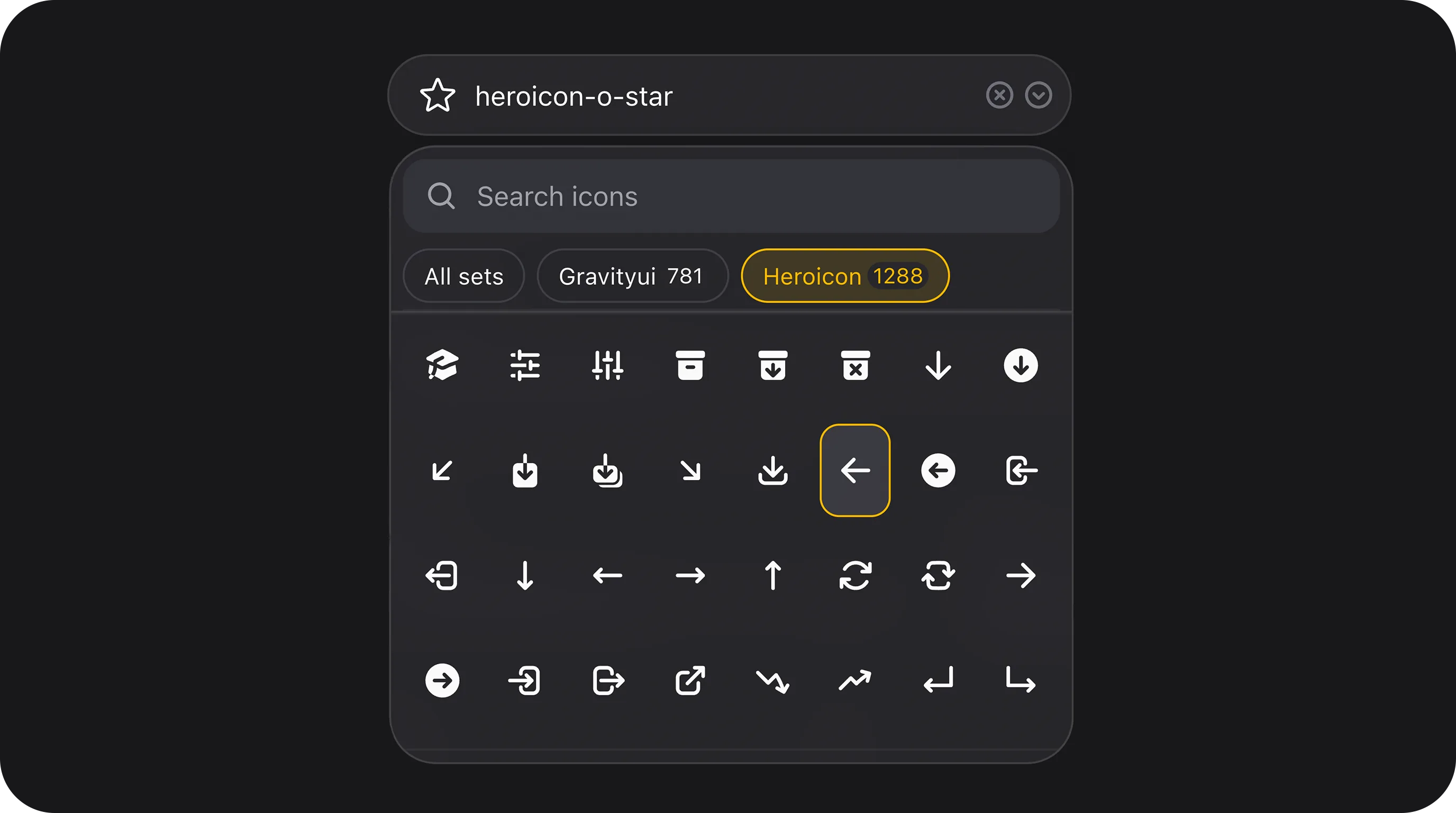

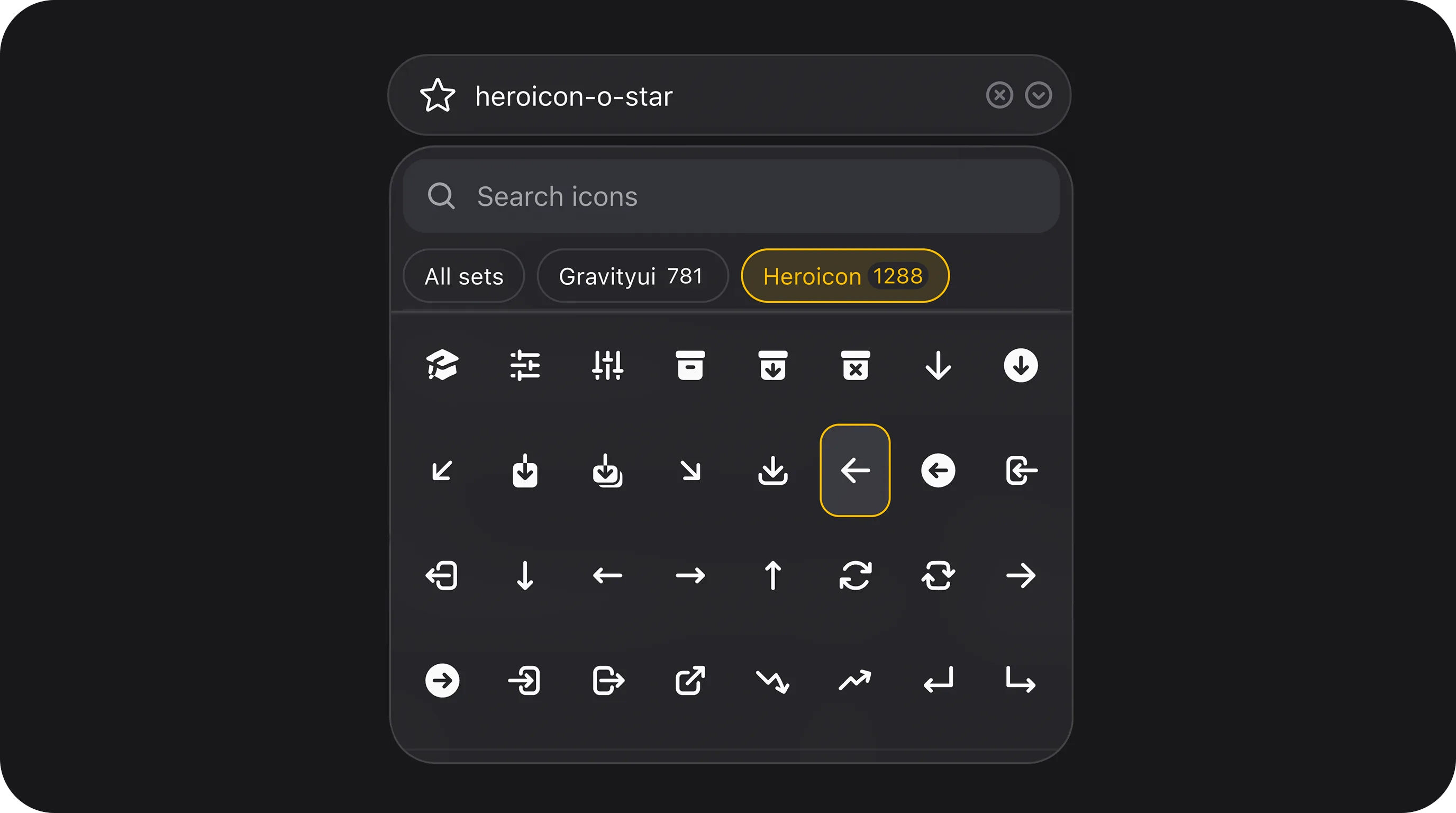

Searchable blade-icons picker with lazy SVG rendering, set filters, whitelist/exclude controls, paginated server-side search, and virtual scrolling for large catalogs. Stores the full icon name string (e.g. heroicon-o-star, gravityui-star).


Class	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\IconPickerField`
State type	`string\|null`
FieldType	`icon_picker`
Playground	`icon-picker-field` slug in Flex Fields playground

The stored value is a plain string, making it compatible with any standard Filament or Blade icon component.

Basic usage

Standard Icon Picker

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\IconPickerField;

IconPickerField::make('menu_icon')
    ->label('Menu icon')
    ->sets(['heroicons', 'gravity-icons'])
    ->preload()
    ->required();

Strict Whitelist

IconPickerField::make('status_icon')
    ->sets(['heroicons'])
    ->icons([
        'heroicon-o-check-circle',
        'heroicon-o-exclamation-triangle',
        'heroicon-o-x-circle',
    ])
    ->gridColumns(4)
    ->size('sm');

State & validation

Stored value

State is the full blade-icons name stored as a plain string.

$record->menu_icon; // 'heroicon-o-star'

Validation rules (built-in)

Custom rule checks the value against the configured catalog (sets, whitelist, and exclude list).

Configuration API

All methods accept Closure unless noted.

Method	Type	Default	Description
`sets(array\|string $sets)`	Setup	all	Limit available icon libraries
`icons(array $icons)`	Setup	—	Whitelist only these full icon names
`excludeIcons(array $icons)`	Setup	—	Remove icons from the catalog
`searchResultsLayout(string $layout)`	Setup	`icons`	`icons`, `grid`, or `list`
`gridColumns(int $columns)`	Setup	`8`	Column count for grid layouts (2–12)
`preload(bool $condition)`	Setup	`false`	Fetch first page on mount
`closeOnSelect(bool $condition)`	Setup	`true`	Close panel after selection
`perPage(int $perPage)`	Setup	`64`	Server page size (max 96)
`limitPerSet(int $limit)`	Setup	—	Cap icons indexed per set
`clearable(bool $condition)`	Setup	`true`	Show clear (×) button
`variant(string $variant)`	Setup	`bordered`	`bordered`, `secondary`, `flat`, `soft`, `faded`
`size(string $size)`	Setup	`'md'`	`sm`, `md`, `lg`
`placeholder(string $text)`	Setup	default	Trigger placeholder

Real-world examples

IconPickerField::make('icon')
    ->label('Navigation Icon')
    ->sets(['heroicons'])
    ->iconsOnly()
    ->gridColumns(10)
    ->preload();

Frontend Usage (Blade)

@if (filled($category->icon))
    <x-icon :name="$category->icon" class="h-6 w-6" />
@endif

Playground

/admin/flex-fields-playground/icon-picker-field See Playground for setup.

Ops notes

getIconPickerSearchResults and getIconPickerSvgPreviews share the Select-family Livewire rate limit (filament-flex-fields.select.search_rate_limit_per_minute). Keys use the authenticated user id or Request::ip() — configure Laravel TrustedProxies behind a reverse proxy. SVG preview batches stay capped at 64 icons. When limited, search returns an empty page (hasMore=false) and SVG previews return [].

Component	When to use instead
IconColumn	Read-only icon display in tables
SelectField	Generic selection without icon previews
RatingField	Star-based rating input

CSS classes (reference)

Class	Role
`fff-icon-picker`	Alpine root inside trigger
`fff-icon-picker-field`	Field wrapper modifier
`fff-icon-picker__preview`	Selected icon SVG in trigger
`fff-icon-picker__panel`	Teleported dropdown panel
`fff-icon-picker__toolbar`	Search and set tabs container
`fff-icon-picker__results`	Scrollable results list
`fff-icon-picker__grid`	Grid cells container
`fff-icon-picker__option`	Individual icon cell
`fff-icon-picker__skeleton`	Loading placeholder
