ProgressCircle - Filament Flex Fields

Summary

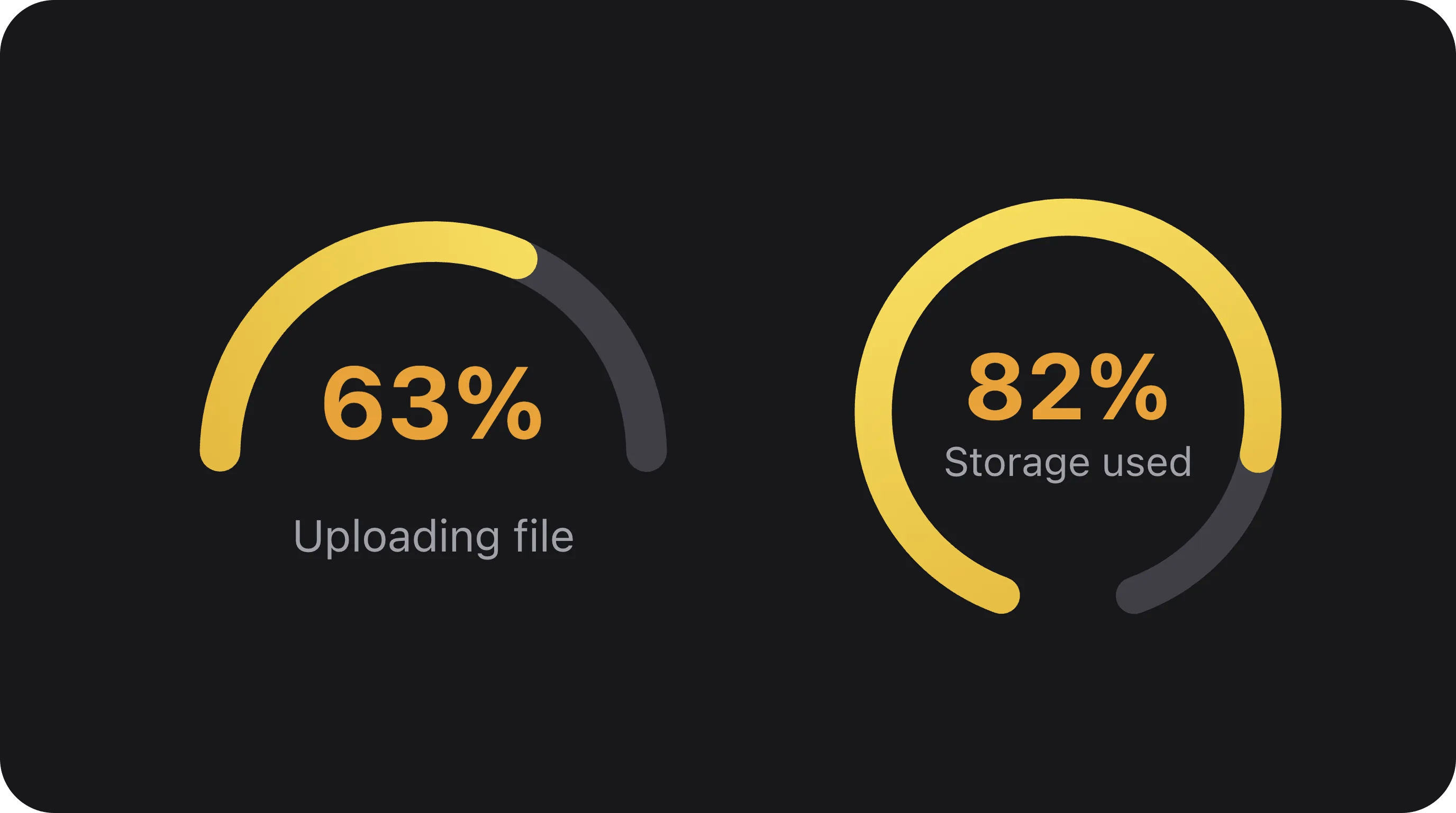

High-performance SVG circular progress indicator. Supports full-circle and semi-circle variants, rounded stroke caps, centered or side-aligned content, and advanced gradient strokes for both fill and track.


Class	`Bjanczak\FilamentFlexFields\Filament\Schemas\Components\ProgressCircle`
State	None — display-only schema component
Playground	`progress-circle` slug in Flex Fields playground
Stylesheet	Lazy `progress-circle` bundle

Basic usage

Standard circle

use Bjanczak\FilamentFlexFields\Filament\Schemas\Components\ProgressCircle;

ProgressCircle::make()
    ->value(75)
    ->displayValue('75%')
    ->color('primary');

Semicircle with gradient

ProgressCircle::make()
    ->variant('semicircle')
    ->value(69)
    ->gapAngle(24)
    ->gradientFrom('#6366f1')
    ->gradientTo('#ec4899')
    ->label('Completion rate');

Card layout with side content

ProgressCircle::make()
    ->value(82)
    ->contentLayout('left')
    ->shell()
    ->heading('Storage used')
    ->description('Last 30 days')
    ->footer('Updated 5m ago');

Configuration API

All methods accept Closure unless noted.

Method	Type	Default	Description
`value(float\|int\|Closure\|null $value)`	Setup	`0`	Arc fill ratio.
`max(float\|int\|Closure $max)`	Setup	`100`	Maximum progress value.
`displayValue(string\|Closure\|null $value)`	Setup	`null`	Primary center text. Auto-derived from percent when omitted.
`fraction(string\|Closure\|null $fraction)`	Setup	`null`	Secondary line (e.g., “124 / 200”) shown below display value.
`label(string\|Closure\|null $label)`	Setup	`null`	Tertiary label shown at the bottom.
`variant(string\|Closure $variant)`	Setup	`'circle'`	`circle` (full ring) or `semicircle` (bottom arc).
`gapAngle(float\|int\|Closure $degrees)`	Setup	`0`	Degrees of empty gap at the bottom of the arc.
`paused(bool\|Closure $condition = true)`	Setup	`false`	Show paused state with center icon instead of text.
`pausedIcon(mixed $icon)`	Setup	`PauseFill`	Icon to show when `paused()` is true.
`color(string\|Closure\|null $color)`	Setup	`primary`	Semantic stroke color.
`size(string\|Closure $size)`	Setup	`'md'`	Diameter scale: `sm`, `md`, `lg`.
`gradientFrom(string\|Closure $color)`	Setup	`null`	Start color for progress stroke gradient.
`gradientTo(string\|Closure $color)`	Setup	`null`	End color for progress stroke gradient.
`gradientStroke(string\|Closure $css)`	Setup	`null`	Raw CSS gradient string for fill stroke.
`trackGradientFrom(string\|Closure $color)`	Setup	`null`	Start color for track (unfilled) gradient.
`trackGradientTo(string\|Closure $color)`	Setup	`null`	End color for track (unfilled) gradient.
`contentLayout(string\|Closure $layout)`	Setup	`'center'`	Text position: `center`, `left`, `right`, `above`.
`shell(bool\|Closure $condition = true)`	Setup	`false`	Wrap in an elevated card container.
`heading(string\|Closure $text)`	Setup	`null`	Card heading (requires `shell()`).
`description(string\|Closure $text)`	Setup	`null`	Card description (requires `shell()`).
`footer(string\|Closure $text)`	Setup	`null`	Card footer (requires `shell()`).
`animated(bool\|Closure $condition = true)`	Setup	`true`	Animate fill transitions.
`animationDuration(int\|Closure $ms)`	Setup	`400`	Transition duration in milliseconds.

Real-world examples

Dashboard Completion Rate

ProgressCircle::make()
    ->value(fn () => $this->getCompletionRate())
    ->variant('semicircle')
    ->gapAngle(30)
    ->size('lg')
    ->color('success')
    ->label('Profile completion')
    ->shell();

Storage Usage with Fraction

ProgressCircle::make()
    ->value(18.5)
    ->max(20)
    ->displayValue('92%')
    ->fraction('18.5GB / 20GB')
    ->color('warning')
    ->size('md');

Playground

/admin/flex-fields-playground/progress-circle See Playground for setup.

Component	When to use instead
ProgressBar	Linear progress for uploads or stepped trackers.
RatingField	Star/icon ratings for user feedback.
CoverCard	Media-heavy cards with background images.

CSS classes (reference)

Class	Role
`fff-progress-circle`	Root wrapper
`fff-progress-circle--{sm\|md\|lg}`	Size variant
`fff-progress-circle--semicircle`	Semicircle variant modifier
`fff-progress-circle--has-shell`	Card shell active
`fff-progress-circle--layout-{center\|left\|right\|above}`	Content alignment
`fff-progress-circle__svg`	SVG element
`fff-progress-circle__track`	Unfilled background arc
`fff-progress-circle__fill`	Animated progress arc
`fff-progress-circle__content`	Centered text container
`fff-progress-circle__display-value`	Primary numeric text
`fff-progress-circle__fraction`	Secondary fraction text
`fff-progress-circle__label`	Bottom label text
