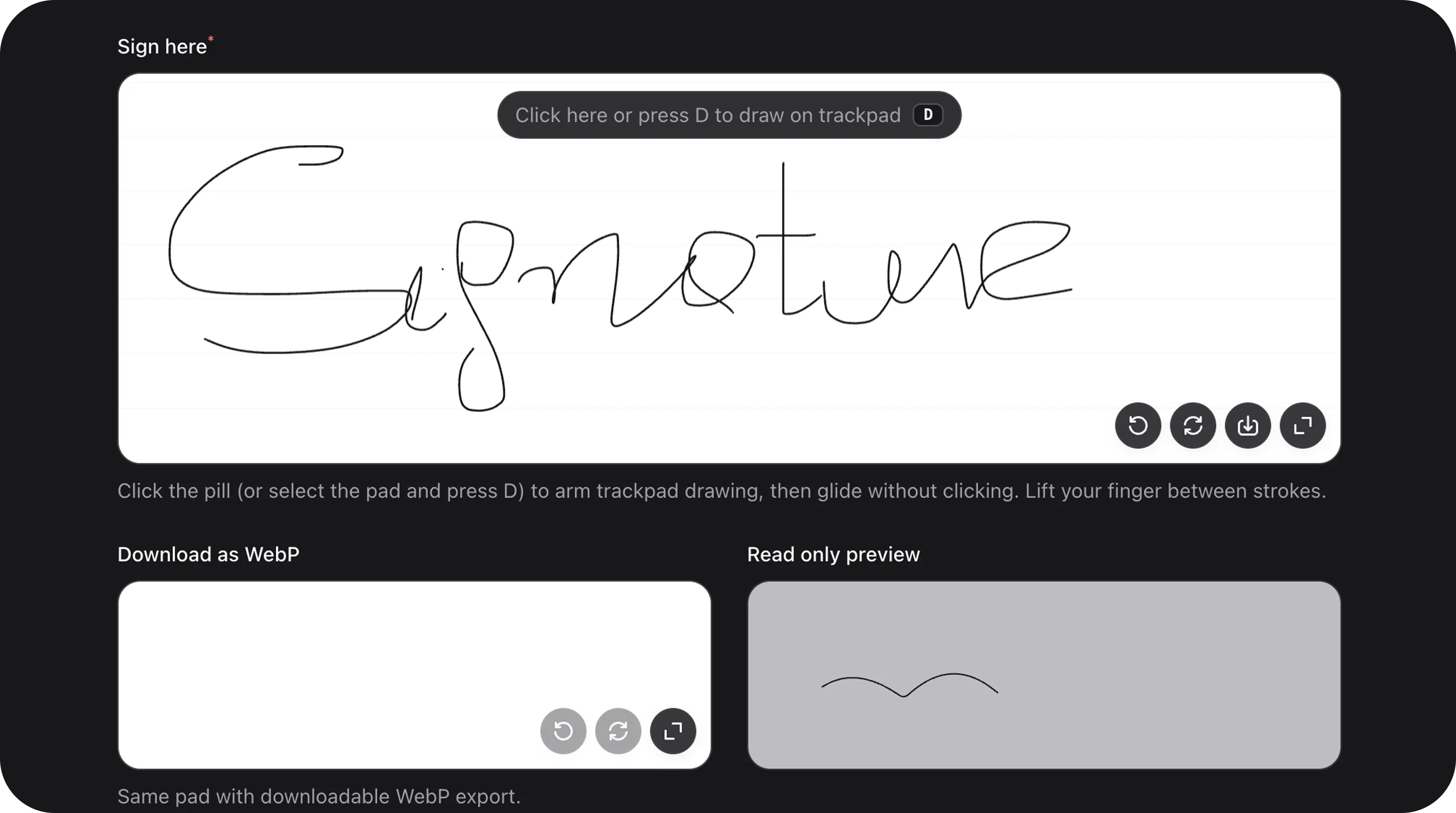

SignatureField

Summary

Canvas signature pad storing normalized SVG markup. Supports undo, fullscreen, optional download (SVG/WebP), and stroke validation.


Class	`Bjanczak\FilamentFlexFields\Filament\Forms\Components\SignatureField`
State type	`string\|null` — normalized SVG document
FieldType	`signature`
Storage constants	`STORE_SVG = 'svg'`
Playground	`signature-field` slug in Flex Fields playground

Mobile, touch & stylus (enterprise)

SignatureField uses the Pointer Events API — one code path for mouse, finger, and active stylus:

Input	Support
Mobile / tablet (finger)	Yes — draw directly on the pad; `touch-action: none` prevents page scroll while signing
Apple Pencil / active stylus	Yes — `pointerType: pen` with pressure-sensitive stroke width
Mouse / trackpad	Yes — optional `trackpadGlide()` for Mac trackpad drawing without click-drag
Retina / HiDPI	Canvas scales with `devicePixelRatio` for sharp output on iPad and phones

Toolbar icon buttons expose Filament tooltips (same copy as aria-label) and use larger hit targets on coarse pointers (@media (pointer: coarse)). Note: passive capacitive styluses (no pressure, reported as touch) behave like finger input. Palm rejection is handled by single-pointer capture — only one active stroke at a time.

Basic usage

use Bjanczak\FilamentFlexFields\Filament\Forms\Components\SignatureField;

SignatureField::make('signature')
    ->label('Sign here')
    ->penColor('#18181b')
    ->backgroundColor('#ffffff')
    ->required();

SignatureField::make('approval_signature')
    ->fullscreen()
    ->undoable()
    ->downloadable(SignatureField::DOWNLOAD_WEBP)
    ->downloadFilename('approval')
    ->maxSizeKb(64)
    ->minStrokes(2);

Read-only preview of an existing signature:

SignatureField::make('signed_at')
    ->default($record->signature_svg)
    ->readOnly();

State format

State is a compact SVG string produced by SignatureSvg::normalize(). null or empty string means no signature. Use normalizeState(mixed $state): ?string to sanitize external SVG before setting state.

Legal pack & Media Ingress

Enterprise e-sign metadata via Media Ingress:

SignatureField::make('contract_signature')
    ->disk() // or ->storeToDisk()
    ->spatieSink('signatures') // optional Media copy; state stays SVG / ffstage:
    ->legalPack()
    ->timestampSeal()
    ->legalMetadataIn('signature_legal')
    ->inkTrail()
    ->pdfPreview();

On save, legalMetadataIn receives:

Key	Source
`sealed_at`	UTC ISO-8601 timestamp
`signer_id`	`MediaCaptureOs::resolveLegalSignerId()` or authenticated user
`ip_address`	Current request IP
`user_agent`	Current request user agent (truncated)
`document_hash`	Optional `MediaCaptureOs::registerDocumentHashResolver()`
`signature_path_count`	SVG path count at seal time

legalPack() requires visible ink (SignatureLegalPack::requiresInk()).

Validation

Check	Detail
`required()`	State must not be empty
Format	Must pass `SignatureSvg::isValid()`
Size	Byte size ≤ `maxSizeKb()` × 1024
Strokes	Path count ≥ `minStrokes()`

Configuration API

`penColor(string|Closure $color)`

Hex pen color. Default: #18181b. Must match #RGB or #RRGGBB.

SignatureField::make('field_name')
    ->penColor('#000000');

`penWidth(float|Closure $width)`

Stroke width in SVG units. Clamped to 0.5–12. Default: 2.5.

SignatureField::make('field_name')
    ->penWidth(2.5);

`backgroundColor(string|Closure|null $color)`

Canvas background hex, or null / 'transparent' for transparent. Default: #ffffff. When left at the default, the pad follows Filament dark mode in the UI (dark zinc pad, light ink) while exported SVG/WebP still uses a white background for document output. Set an explicit hex to lock both display and export.

SignatureField::make('field_name')
    ->backgroundColor('#ffffff');

`fullscreen(bool|Closure $condition = true)`

Enable fullscreen drawing mode. Default: true.

SignatureField::make('field_name')
    ->fullscreen(true);

`undoable(bool|Closure $condition = true)`

Show undo control. Default: true.

SignatureField::make('field_name')
    ->undoable(true);

`maxSizeKb(int|Closure $kilobytes)`

Maximum stored SVG size in kilobytes. Default: 48.

SignatureField::make('field_name')
    ->maxSizeKb(1024);

`minStrokes(int|Closure $strokes)`

Minimum number of SVG paths required. Default: 1.

SignatureField::make('field_name')
    ->minStrokes(3);

`viewBox(int|Closure $width, int|Closure $height)`

SVG viewBox dimensions. Defaults from SignatureSvg::VIEWBOX_WIDTH / VIEWBOX_HEIGHT.

SignatureField::make('field_name')
    ->viewBox(400, 200);

`smoothing(bool|Closure $condition = true)`

Bezier smoothing on strokes. Default: true.

SignatureField::make('field_name')
    ->smoothing(true);

`trackpadGlide(bool|Closure $condition = true)`

Hold modifier key to draw with trackpad without clicking. Default: false.

SignatureField::make('field_name')
    ->trackpadGlide(true);

`trackpadGlideKey(string|Closure $key)`

Single letter a–z for glide modifier. Default: d.

SignatureField::make('field_name')
    ->trackpadGlideKey('shift');

`guidelines(bool|Closure $condition = true)`

Show baseline guidelines on canvas. Default: false.

SignatureField::make('field_name')
    ->guidelines(true);

`downloadable(string|Closure|null $format = 'svg')`

Enable client-side download. Formats: SignatureField::DOWNLOAD_SVG or SignatureField::DOWNLOAD_WEBP. Pass null to disable.

SignatureField::make('field_name')
    ->downloadable('svg');

`downloadFilename(string|Closure $filename)`

Download file base name without extension. Default: signature.

SignatureField::make('field_name')
    ->downloadFilename('signature.svg');

`webpQuality(float|Closure $quality)`

WebP export quality 0.1–1. Default: 0.9.

SignatureField::make('field_name')
    ->webpQuality(0.8);

`undoIcon()` / `clearIcon()` / `downloadIcon()` / `fullscreenIcon()` / `closeIcon()`

Override toolbar icons (string|BackedEnum|Htmlable|Closure|null).

SignatureField::make('field_name')
    ->undoIcon('heroicon-o-arrow-path')
    ->clearIcon('heroicon-o-trash')
    ->downloadIcon('heroicon-o-arrow-down-tray')
    ->fullscreenIcon('heroicon-o-arrows-pointing-out')
    ->closeIcon('heroicon-o-x-mark');

`readOnly(bool|Closure $condition = true)`

Disable drawing; display existing SVG only.

SignatureField::make('field_name')
    ->readOnly(true);

Public helper methods

Method	Returns	Description
`getPenColor()`	`string`	Lowercase hex
`getPenWidth()`	`float`	Clamped width
`getBackgroundColor()`	`string\|null`	Background hex or `null`
`isFullscreenEnabled()`	`bool`	Fullscreen available
`isUndoable()`	`bool`	Undo enabled
`getMaxSizeKb()`	`int`	Size limit
`getMinStrokes()`	`int`	Minimum paths
`getViewBoxWidth()` / `getViewBoxHeight()`	`int`	ViewBox size
`isSmoothingEnabled()`	`bool`	Smoothing on
`isTrackpadGlideEnabled()`	`bool`	Trackpad glide on
`getTrackpadGlideKey()`	`string`	Modifier key
`isGuidelinesEnabled()`	`bool`	Guidelines visible
`getDownloadFormat()`	`string\|null`	`svg`, `webp`, or `null`
`getDownloadFilename()`	`string`	Download base name
`getWebpQuality()`	`float`	WebP quality
`getUndoIcon()` etc.	`string\|BackedEnum\|Htmlable`	Resolved icons
`normalizeState(mixed $state)`	`string\|null`	Sanitized SVG
`getWrapperClasses()`	`array<string, bool>`	`fff-signature-field`

FlexField schema config

Config key	Maps to
`pen_color`	`penColor()`
`pen_width`	`penWidth()`
`background_color`	`backgroundColor()`
`fullscreen`	`fullscreen()`
`undoable`	`undoable()`
`max_size_kb`	`maxSizeKb()`
`min_strokes`	`minStrokes()`
`smoothing`	`smoothing()`
`download_format`	`downloadable()`
`download_filename`	`downloadFilename()`
`webp_quality`	`webpQuality()`

CSS classes

Class	Role
`fff-signature-field`	Root wrapper
`fff-signature-field__canvas`	Drawing surface
`fff-signature-field__toolbar`	Action buttons

Implementation notes

Store SVG in text or longText columns; consider maxSizeKb() for DB limits.
WebP download is generated client-side from the canvas — not stored in form state.

Playground

Slug: signature-field

Demo field	Shows
Default	Undo, pen color, stroke validation
Fullscreen	Fullscreen modal + guidelines
Download	SVG / WebP export options

/admin/flex-fields-playground/signature-field — see Playground.

Component	When to use instead
FlexFileUpload	Upload a scanned signature image
FlexRichEditor	Rich text consent clauses above the pad
BarcodeScannerField	Capture IDs or document barcodes
